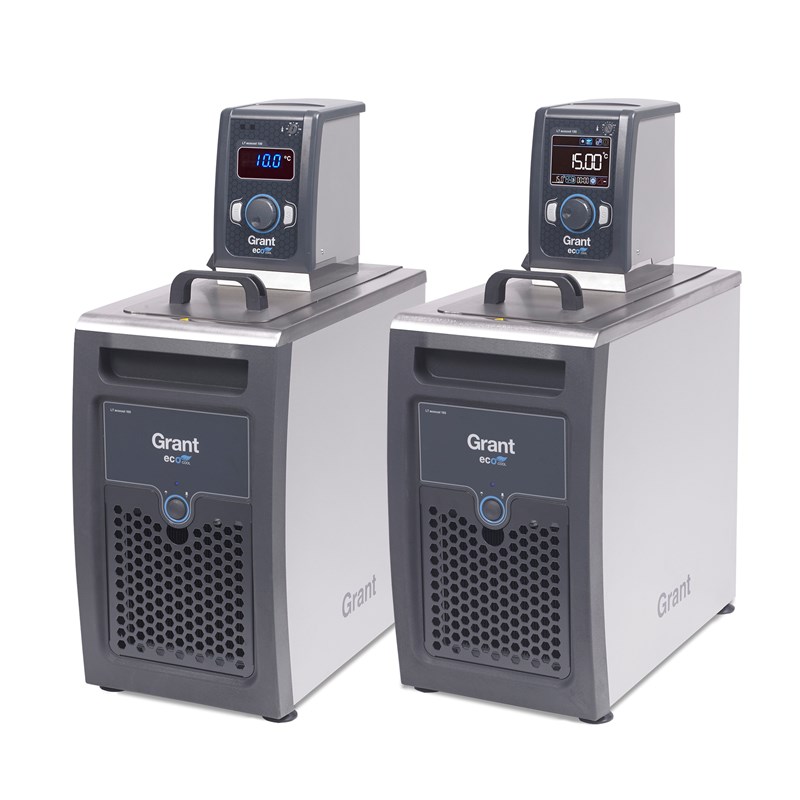

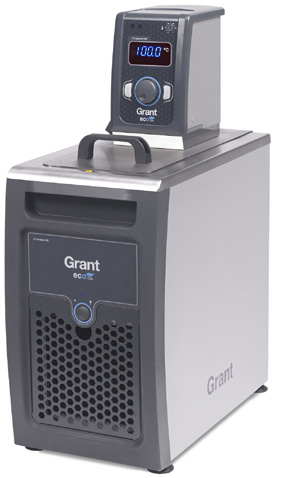

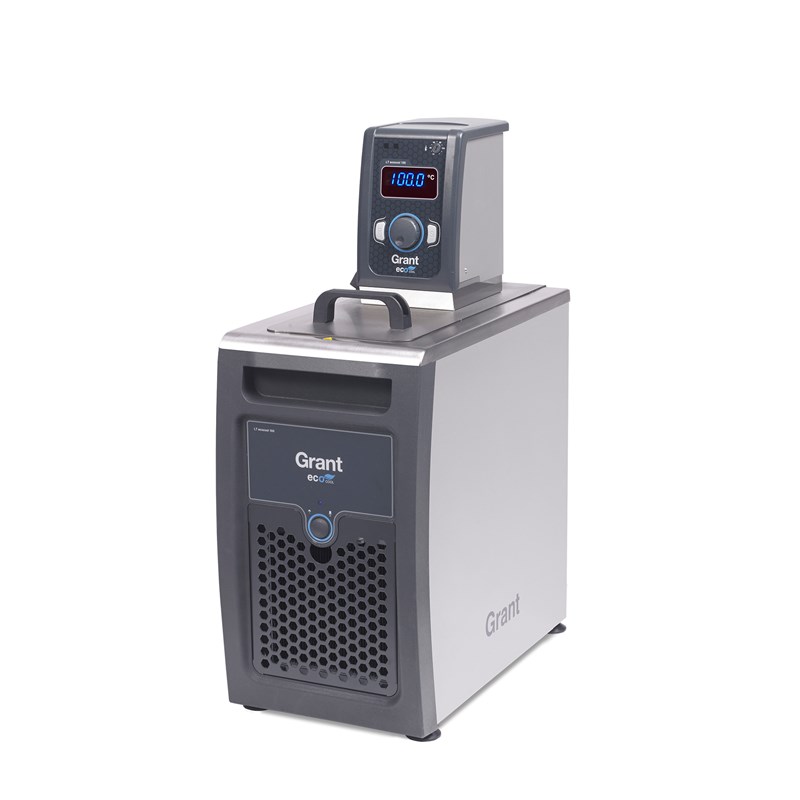

LT Ecocool系列变频制冷循环水浴，提供了更低的能耗和更强的制冷性能。
本系列包含3个型号，所有型号均标配外循环套件，包括外循环软管，夹具及连接件。
.3个型号可选，温度范围从-30℃到+200℃（取决于所选型号）
.全程温度范围内主动冷却技术 .比常规旧款压缩制冷系统更节能
.英国制造，品质保证 .温度控制器与制冷器协同工作，避免了过热及结冰造成的危险
.时尚的外观设计
| LT ecocool™ energy efficient refrigerated / heating circulating baths - | |||||
| Technical specifications | |||||
| LT ecocool™ 100 | LT ecocool™ 150 | LT ecocool™ 200* | |||
|---|---|---|---|---|---|
|
Temperature range |
°C | -20 to 100 | -25 to 150 | -30 to 200 | |
| Temperature stability | ±°C | 0.05 | 0.02 | 0.01 | |
| Flow rate (max) | L/min | 17 | 14 - 22 (adjustable) | ||
| Pump pressure (max) | mbar | 250 | 530 | 530 | |
| Tank volume | L | 5 | 6 | ||
| Working Area (d x w) | mm | 118 x 154 | |||
| Min/Max liquid level | mm | 85/145 |
130/145 |
||
| Calibration points | 2 | 5 | |||
| Cooling power (typical) W | @ 20°C | 250 | 350 | 500 | |
| @ 10°C | 230 | 330 | 430 | ||
| @ 0°C | 185 | 230 | 300 | ||
| @ -10°C | 115 | 109 | 140 | ||
|
@ -20°C |
45 | 50 | 50 | ||
| Programs | - | 1 x 30 segments via Labwise™ | 10 x 100 segments | ||
| Communication interface | - | USB | |||
| Temperature probe socket | - | 6 pin mini DIN | |||
| Display | 4 digit LED | Full colour QVGA TFT | |||
| Languages | - | 5 (EN, FR, DE, IT, ES) | |||
| Timer | 1 min to 99 hrs 59 mins | ||||
| Temperature presets | 3 | ||||
| Alarms | High | High and low | |||
| Electrical power (max) W | 120V/230V | 2160/2070 (60/50 Hz) | 2280/2760 (60/50 Hz) | -/2760 (60/50 Hz) | |
| Safety | Adjustable over temperature cut-out | ||||
| Ready to use kits | Assembled and supplied with standard tubing, insulation, clips and connectors | ||||
Product Calibration
A product calibration service is available which includes a calibration certificate, traceable to national standards. Please enquire prior to placing order.
| Labwise™ PC software (optional) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Allows two-way communication for status display, programming and data capture | ||||||||||
| T100 | TC120 | TX150 | TXF200 | LT ecocool LT 100 | LT ecocool 150 | LT ecocool 200 | ||||
| Labwise | - | - | YES | YES | - | YES | YES | |||
| External probes (optional) | |||||||
|---|---|---|---|---|---|---|---|
| for monitoring and controlling temperature of remote loads | |||||||
| T100 | TC120 | TX150 | TXF200 | LT ecocool 100 | LT ecocool 150 | LT ecocool 200 | |
| TXPEP flexible plastic probe, 3m cable | - | - | YES | YES | - | - | - |
| TXSEP stainless steel probe, 3m cable | - | - | YES | YES | - | - | - |
| PEP flexible plastic probe, 3m cable | - | - | - | - | - | YES | YES |
| SEP stainless steel probe, 3m cable | - | - | - | - | - | YES | YES |
| Vertical turbine pumps (optional)* | ||||||||
|---|---|---|---|---|---|---|---|---|
| Required only where application demands a higher pressure than that delivered by the internal pump to maintain flow.Low noise, compact design. Supplied with pipe connections and special lid for fitting to tanks, pipe bore 12.7 mm. | ||||||||
| T100 | TX120 | TX150 | TXF200 | LT ecocool 100 | LT ecocool 150 | LT ecocool 200 | ||
|
VTP1 max. pressure: 1000 mbar max. flow: 9 L/min |
YES | YES | YES | YES | - | - | - | |
|
VTP2 max. pressure: 1650 mbar max. flow: 12 L/min |
YES | YES | YES | YES | - | - | - | |
|
VTP1-LT max. pressure: 1000 mbar max flow: 9L/min |
- | - | - | - | YES | YES | YES | |
|
VTP2-LT max. pressure: 1650 mbar max flow: 12 L/min |
- | - | - | - | YES | YES | YES | |
|
CW5 heat exchange coil |
YES | YES | YES | YES | YES | YES | YES | |
|
IQOQ documentation |
IQOQ T100 + IQOQ R4 IQOQ T100 + IQOQ R5 |
IQOQ TC120 + IQOQ R4 IQOQ TC120 + IQOQ R5 |
IQOQ TX150 + IQOQ R4 IQOQ TX150 + IQOQ R5 |
IQOQ TXF200 + IQOQ R4 IQOQ TXF200 + IQOQ R5 |
IQOQ LT ecocool 100 | IQOQ LT ecocool 150 | IQOQ LT ecocool200 | |
|
PQ documentation |
PQ T100 + PQ R4 PQ T100 + PQ R5 |
PQ TC120 + PQ R4 PQ TC120 + PQ R5 |
PQ TX150 + PQ R4 PQ TX150 + PQ R5 |
PQ TXF200 + PQ R4 PQ TXF200 + PQ R5 |
PQ LT ecocool 100 | PQ LT ecocool 150 | PQ LT ecocool 200 | |
|
Extended warranty 1 year EWC1 |
YES |
YES |
YES |
YES |
YES | YES | YES | |
|
Extended warranty 2 years EWC2 |
YES | YES | YES | YES | - | - | - | |
| Pump Connectors | |
|---|---|
|
Part number |
|
| Replacement plastic pump inlet/outlet connector. Fits tubing 9mm outer dia. Temp range -50 to 200˚C |
P-M6 |
| Replacement plastic pump inlet/outlet connector. Fits tubing 15mm outer dia. Temp range -50 to 200˚C |
P-M11 |
| Metal pump inlet/outlet connector, dual seal super rapid 4mm. Fits semi rigid tubing 4mm outer dia. Temp range -20 to 100˚C |
M-SR4 |
| Metal pump inlet/outlet connector, dual seal super rapid 6mm. Fits semi rigid tubing 6mm outer dia. Temp range -20 to 100˚C |
M-SR6 |
| Metal pump inlet/outlet connector, dual seal super rapid 8mm. Fits semi rigid tubing 8mm outer dia. Temp range -20 to 100˚C |
M-SR8 |
| Metal pump inlet/outlet connector, hose barb 7mm. Fits flexible tubing 7mm inner dia. Temp range -40 to 120˚C |
M-HB7 |
| Metal pump inlet/outlet connector, hose barb 9mm. Fits flexible tubing 9mm inner dia. Temp range -40 to 120˚C |
M-HB9 |
| Metal pump inlet/outlet connector, hose barb 12mm. Fits flexible tubing 12mm inner dia. Temp range -40 to 120˚C |
M-HB12 |
| Metal pump inlet/outlet plate, 1/4 " BSP/G1/4 female. Temp range -50 to 200˚C |
M-UC |
| General purpose hose kit, includes 2 x 2m general purpose insulated hosing -40 to 100˚C, assembled with LT ecocoolTM/OptimaTM pump outlet plate and simple hose clips, no tools required |
HOSE100 |
| High temperature hose kit, includes 2 x 2m high temperature insulated hosing -50 to 200˚C, assembled with LT ecocoolTM/OptimaTM pump outlet plate and simple hose clips, no tools required (illustrative image) | HOSE200 |
* When pump is fitted, available working area is reduced.
